What is a Boat Draft?

If you’re shopping for a new boat, you’ve probably come across the nautical phrase “draft” a few times. The draught of a boat is another term for it. Whatever term you’ve come across, you must understand what it means. Between the lowest point, the distance hull to the top of the waterline is the draft of a boat. A draft is a depth at which a vessel sinks below the water’s surface.

Before going out on the water, it’s critical to understand a boat’s draft. It informs the driver and passengers of the required water depth for the vessel to float freely. If you wish to go drifting, you’ll need a smaller draft. Both shallow draft and deep draft vessels have advantages and disadvantages. Thinking about where to use your boat and the depth of water you want to take it out will determine which type of draft is best for you.

Outboard boats are typical with an inclining engine. In addition, the builder’s weight is often empty tanks and no equipment. When looking for a new boat as a novice, several options and types to choose from might be intimidating. “Where would I like to utilize my boat?” You might wonder.” based on the information below, you’ll be able to determine if a shallow or deep draught sailboat is best for you!

Boat draft is the lowest quantity of water to keep the boat afloat without contacting the bottom. It’s also typical to hear that a boat “draws 24 inches,” which refers to the depth of its draft.

  • The lowest point below the boat, the propeller or the rudder, would be used to calculate drafts on boats using inboard pod drives or direct-drive inboard propulsion.
  • Because the drive on the outboard or sterndrive-powered boats can be raised or lowered, two draft specifications are sometimes supplies, one for “drive down’ and one for “drive up.”
  • The keel- the bottom of the boat will be the lowest place on the boat after the drive up.

How Can You Figure Out the Draft of a Boat?

You will include the draft of your boat in most boat specs. So, if you’re seeking to buy, keep this in mind. Using a boat on shallower water is very vital. You’ll need a boat with a shallower draft for easier entry. It depends on the type of boat to drive; the draft is computed differently. For example, the gear at the lowest point of the boat determines the draft for boats using inboard pod drives or direct-drive inboard propulsion. The rudder, propeller, or gear beneath the boat could be the culprit.

You’ll certainly have two draft measurements if you’re using an outboard motor. These specifications will be labeled ‘drive down’ and ‘drive up.’ They reflect the draft distance of the boat when the drive is lowered or increased. If the drive is up, the draft will be measured from the keel or wherever the lowest part of the boat is now. While the drive is down, the skeg, which is located on the front of the propeller, is likely to be the lowest point of the boat.

The Draft of a Boat is an Estimate

The majority of draft measurements apply to running dry boats, meaning that both the fuel and water tanks are empty. They also don’t consider the weight of cargo and, of course, passengers. The weight distribution of passengers on smaller vessels could affect the draft. If, for example, the weight is distributed more to the bow or stern. The hull design can also impact how the draft reacts to the boat’s load distribution.

The more the weight onboard, the lower the boat will be on the water and the more it will draw, as a general rule. If you require precise draft measurements, load the boat as usual, then measure the draft.

Types of Boat Drafts

When you’re looking for a new boat as a novice, there are so many styles and options that it might be intimidating. Ask yourself, “Where should I invest and use my boat?” Depending on the facts below, you’ll be able to determine if a shallow or deep draught sailboat is best for you!

Boats with a Deep Draft

Deep Drafts are divided into a round with keel and deep V.

Deep-draft boats are ideal for navigating stormy water and waves without toppling over. They frequently have a keel that is intended to enhance stability. Deep draft vessels are designed for larger bodies of water, such as the ocean or huge lakes, but they cannot handle most inland waterways. They’re fantastic for fishing off the coast.

Boats with Low Draft

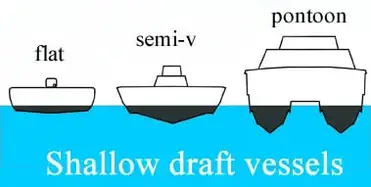

Flat, Semi V, and Pontoon are examples of shallow drafts.

In calm water, flat-bottom boats are extremely stable, providing a comfortable ride. They cannot, however, go into deeper water in turbulent waves. A flat-bottomed boat will capsize in rough waters. Their primary purpose is to fish inshore in relatively shallow water, and interviews are important. Keels are nearly never in shallow-draft boats.

What is the Significance of Boat Draft?

You’ll need to know your boat’s draft measures if you’re going out in shallow water. Anyone entering a harbor or dock should have a solid idea of what their boat draws to remain off the bottom, especially if the tide is low. Anglers who prefer to fish in the shallows or on the flats should know their draft. If you love this type of fishing, you should look for a boat with shallow drafts so you can easily access those shallower locations.

Final Takeaway

If you plan to use inland waterways for freshwater fishing, hunting, or just relaxing journeys up and down rivers and streams, a shallow draft flat bottom boat is the way. Inland waterways are often tranquil, with at least a few patches of water that are too shallow for a deep draft boat, if not the entire channel.
